How Infrared Asphalt Repair Works and When to Use It

Traditional asphalt patching has a well-known weakness: the cold joint. When new asphalt is placed against existing asphalt that has cooled, the two materials never fully bond. Water infiltrates the joint, freeze-thaw cycling widens it, and within a few years the patch has failed. Infrared repair eliminates this problem by heating the existing asphalt back to a workable temperature before adding new material.

What Is Infrared Repair?

Infrared asphalt repair is a technique that uses infrared radiant heat to soften existing asphalt to a workable temperature (approximately 325°F), allowing it to be raked, leveled, and blended with new material before compaction. The result is a seamless repair with no cold joint — the new and existing asphalt are thermally bonded into a single continuous surface.

The technology has been available since the 1980s but has become significantly more refined and widely used over the past two decades. Modern infrared heaters use propane-fired infrared panels that heat the asphalt evenly without burning or oxidizing the surface.

How the Process Works

The infrared repair process follows a consistent sequence:

1. Area preparation: The repair area is cleaned of debris, loose material, and standing water.

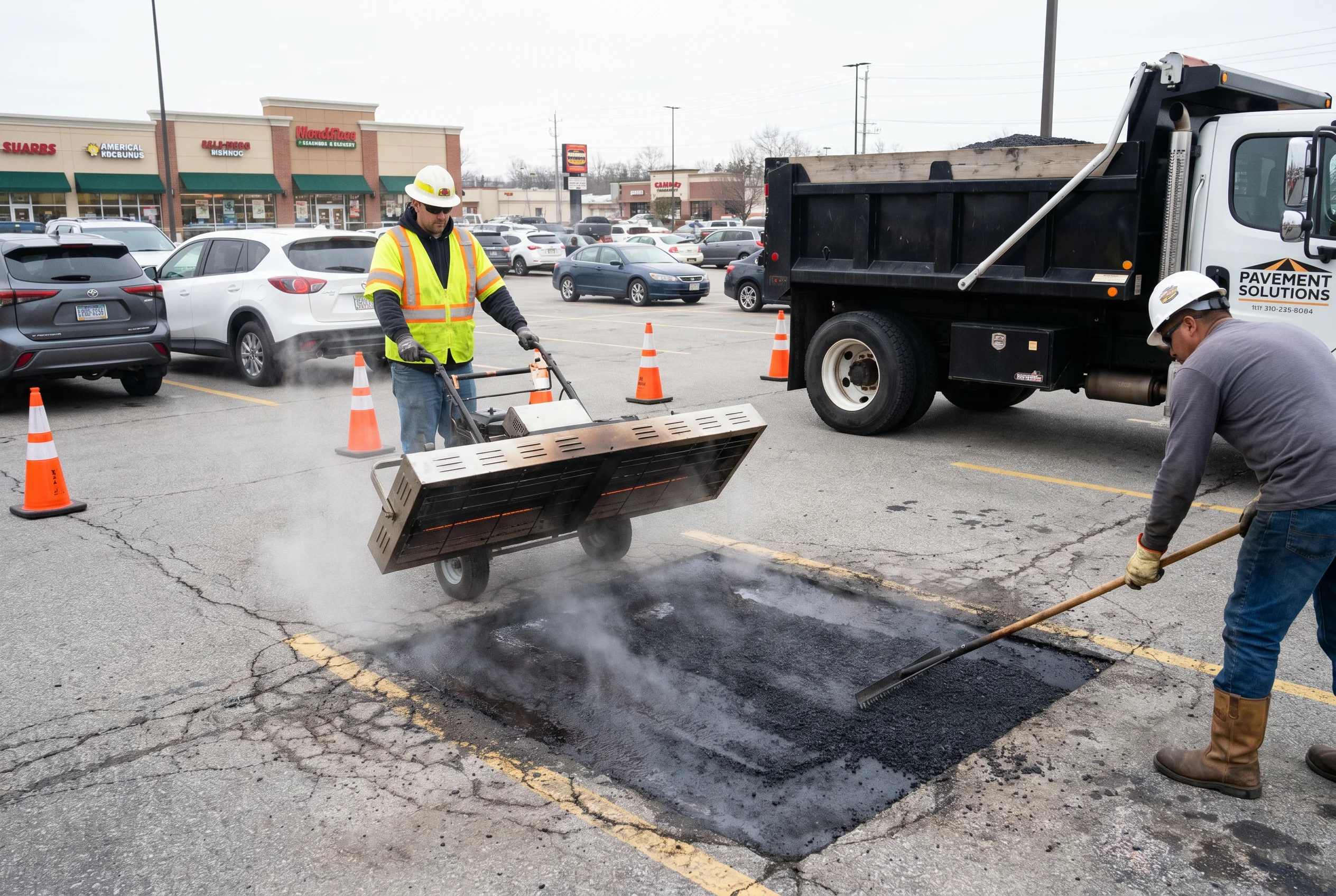

2. Infrared heating: The infrared heater is positioned over the repair area and left in place for 5–8 minutes, heating the asphalt to approximately 325°F to a depth of 2–3 inches.
3. Raking and conditioning: The softened asphalt is raked to remove deteriorated material and reshape the area. A rejuvenating additive is applied to restore the binder properties of the existing asphalt.
4. New material addition: Fresh hot-mix asphalt is added as needed to bring the area to the correct level.
5. Blending: The new and existing material are blended together at the edges to create a seamless transition.
6. Compaction: The area is compacted with a vibratory plate or roller to achieve proper density.

The entire process typically takes 20–45 minutes per repair area. The surface can be driven on immediately after compaction.

Advantages Over Traditional Patching

No cold joint: The thermal bond between new and existing material eliminates the primary failure point of traditional patching. Infrared repairs consistently outlast saw-cut patches by a significant margin.

Speed: Most infrared repairs are complete in under an hour, compared to the excavation, base preparation, and material placement required for traditional patching.

Minimal disruption: No saw cutting, no excavation, no debris removal. The process is clean and quiet compared to traditional methods.

Material recycling: The existing asphalt is reused rather than removed and discarded. This reduces material cost and waste.

Seamless appearance: A properly executed infrared repair is nearly invisible once the surface has been sealcoated. Traditional patches are always visible as distinct rectangles.

Best Applications

Infrared repair is the preferred method for the following conditions:

• Potholes: Particularly effective for potholes that have not yet reached sub-base failure. The surrounding asphalt is softened and blended with new material for a durable, seamless repair.
• Utility cuts: When utility work requires cutting through the driveway or parking lot, infrared repair restores the surface seamlessly after the work is complete.
• Sunken areas: Low spots that collect water can be raised and leveled with infrared repair without disturbing the surrounding surface.
• Surface irregularities: Bumps, humps, and uneven areas caused by tree roots or frost heave can often be corrected with infrared repair.
• Crack repair: Wide cracks that have not yet reached alligator cracking can be effectively treated with infrared repair.

Limitations

Infrared repair is not appropriate for all situations. The following conditions require traditional excavation and reconstruction:

• Sub-base failure: If the asphalt is failing because the base material has lost load-bearing capacity (indicated by alligator cracking or springy feel underfoot), the base must be excavated and rebuilt. Infrared repair cannot fix a structural problem.
• Severely oxidized asphalt: Very old asphalt that has lost most of its binder cannot be effectively reheated and blended. The material will crumble rather than soften.
• Contaminated asphalt: Areas contaminated with oil, fuel, or other solvents cannot be effectively repaired with infrared methods.
• Large-scale deterioration: When deterioration covers a large percentage of the surface, full replacement is more cost-effective than infrared repair of individual areas.

Infrared vs. Traditional Patching

Cost Considerations

Infrared repair typically costs more per square foot than traditional cold-patch repair, but less than saw-cut hot-mix patching. The higher upfront cost is offset by significantly longer repair life — infrared repairs typically last 2–3 times longer than traditional patches.

For residential driveways, a typical pothole or sunken area repair using infrared methods costs $300–$600 depending on the size of the area. For commercial parking lots with multiple repair areas, the cost per repair decreases with volume.

When to Choose Infrared

Infrared repair is the right choice when: the underlying sub-base is sound, the repair area is localized (not widespread deterioration), the existing asphalt is in reasonable condition (not severely oxidized), and durability and appearance are priorities.

If you have a driveway with potholes, sunken areas, or utility cuts that need repair, ask your contractor specifically about infrared repair. A contractor who offers this option and can explain when it is and is not appropriate is demonstrating a higher level of technical knowledge than one who defaults to traditional patching for every repair.
